- Sku: allen_bradley_2198_h040_ers
- Vendor: Allen-Bradley
Allen-Bradley - 2198-H040-ERS
$2,990.00 USD
Just 1 left. Order soon!

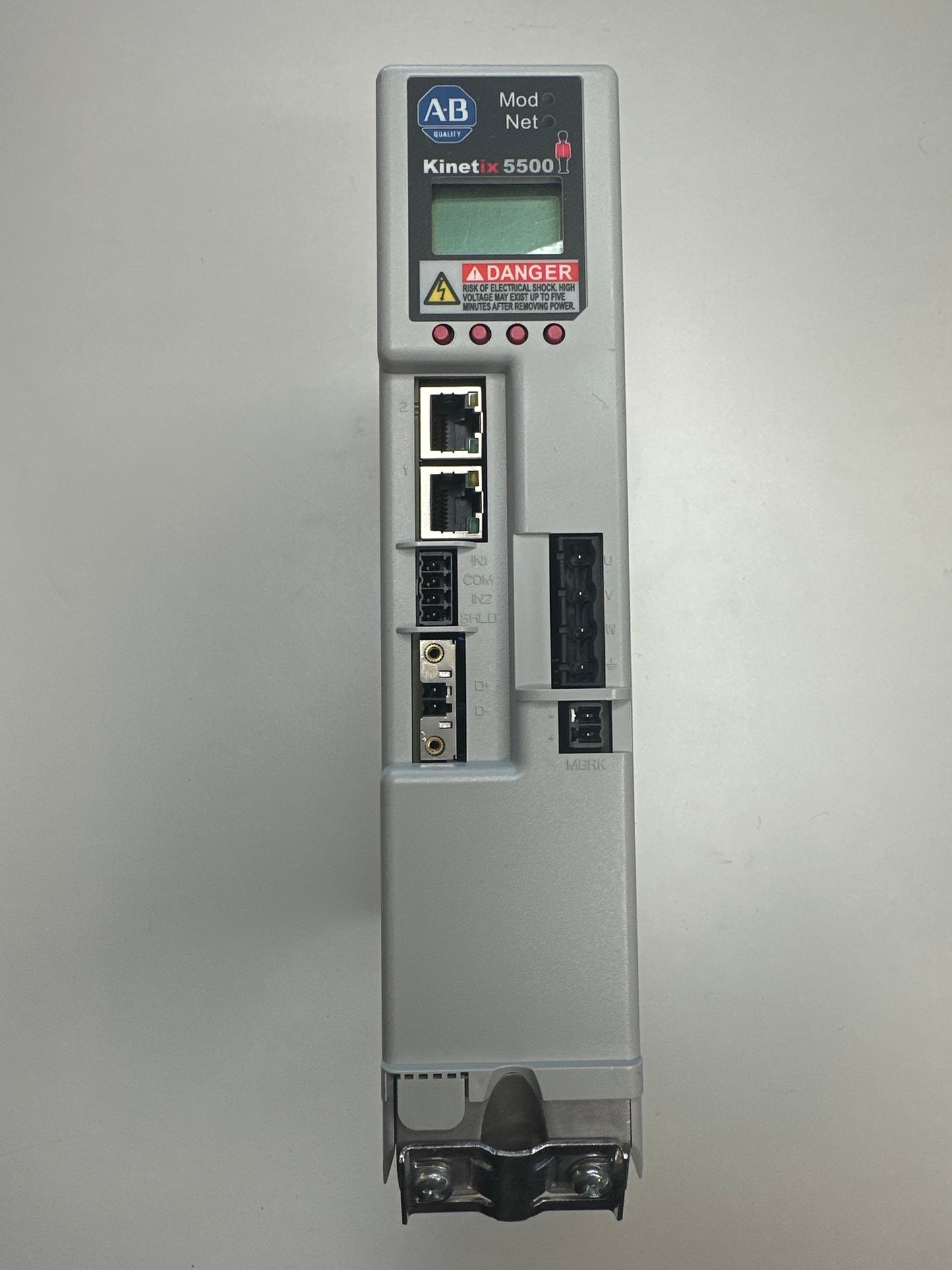

The Allen-Bradley 2198-H040-ERS is a 3-phase, 195-528 VAC, 18.4A, servo drive. It is designed for use with CompactLogix 5370 controllers and supports integrated motion on Ethernet / IP. This drive has a compact, small form-factor design that supports direct panel mounting to an enclosure inner panel. Operate this servo drive at a temperature range of 0… 50 °C (32… 122 °F) when installed with the 2198-KITCON-DSL connector kit and 0… 40 °C (32… 104 °F) when installed without the connector kit.
Here is a spec table for the Allen-Bradley 2198-H040-ERS:
Specification | Value |
---|---|
Input voltage | 3-phase, 195-528 VAC |
Output voltage | 24 VDC |
Output current | 18.4 A |
Peak output current | 32.5 A |
Power rating | 4.0 kW - 8.3 kW |
Servo motor rating | 0.5 kW - 2.0 kW |
Dimensions | 152 x 127 x 44 mm (6.0 x 5.0 x 1.7 in) |
Weight | 1.36 kg (3.0 lb) |
Environment | Temperature: 0 to 50°C (32 to 122°F), Humidity: 10 to 95% |
Protection | IP20 (non-metallic enclosure) |
