Banner - Q3XTBLD-Q8
$175.00 USD
Just 1 left. Order soon!

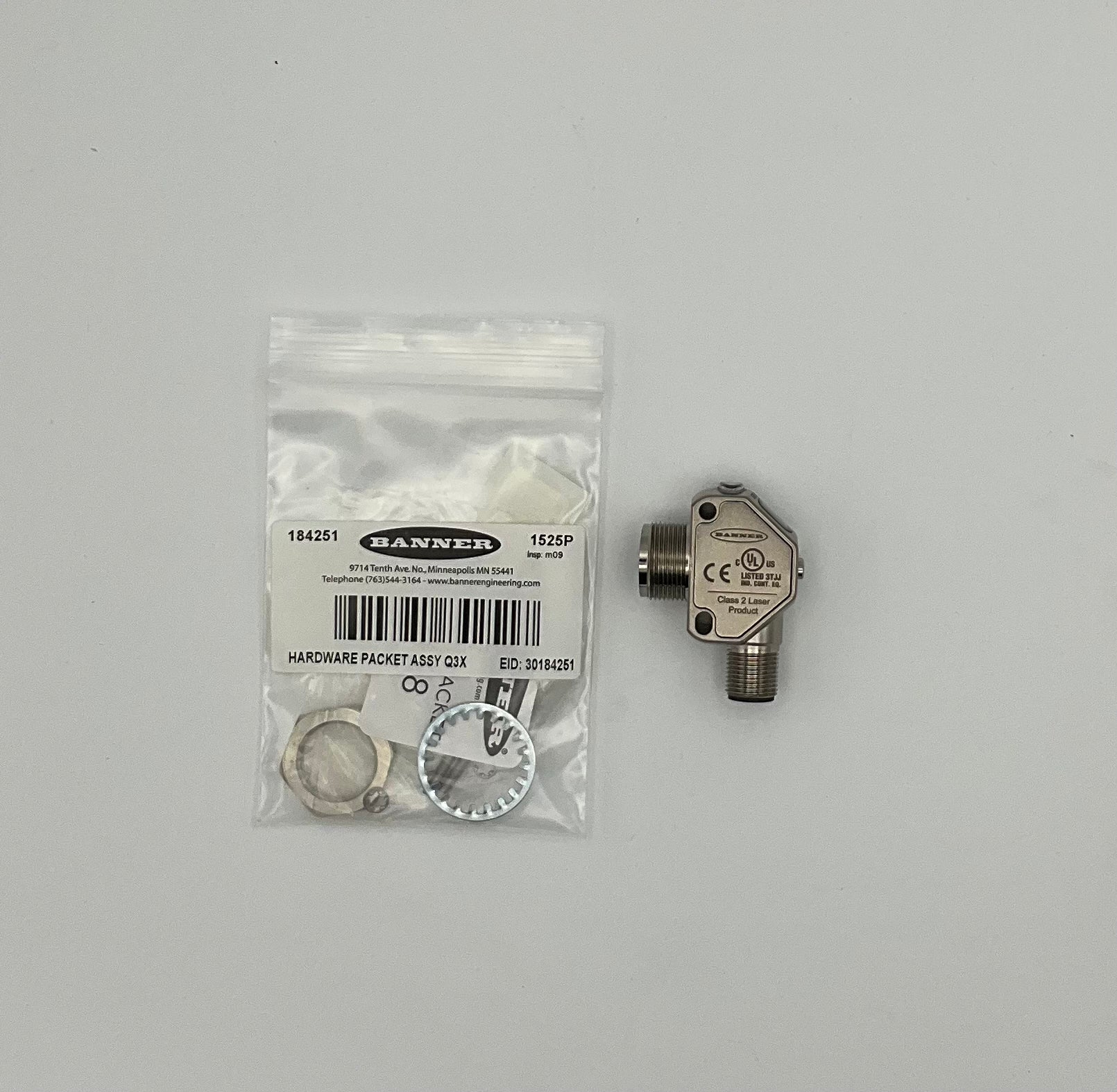

The Banner Q3XTBLD-Q8 is a laser diffuse sensor that uses a visible red laser to emit a beam of light. When the beam is interrupted by an object, the sensor outputs a signal. The sensor has a bipolar (NPN and PNP) output, which can be connected to a variety of PLCs and other devices. The Q3XTBLD-Q8 is a versatile sensor that can be used in a variety of applications, including:
- Machine vision
- Material handling
- Packaging
- Robotics
| Feature | Value |
|---|---|
| Sensing principle | Laser diffuse |
| Output type | Bipolar (NPN and PNP) |
| Operating voltage | 10-30VDC |
| Sensing range | 300mm |
| Detection angle | 60° |
| Response time | <1ms |
| Repeatability | ±0.5mm |
| Ambient temperature | -20°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Protection rating | IP67 |
| Dimensions | 18mm x 70mm x 40mm |
| Weight | 100g |
