- Vendor: Beckhoff
Beckhoff - AM3043-1G31-0000
$1,874.00 USD
Just 1 left. Order soon!

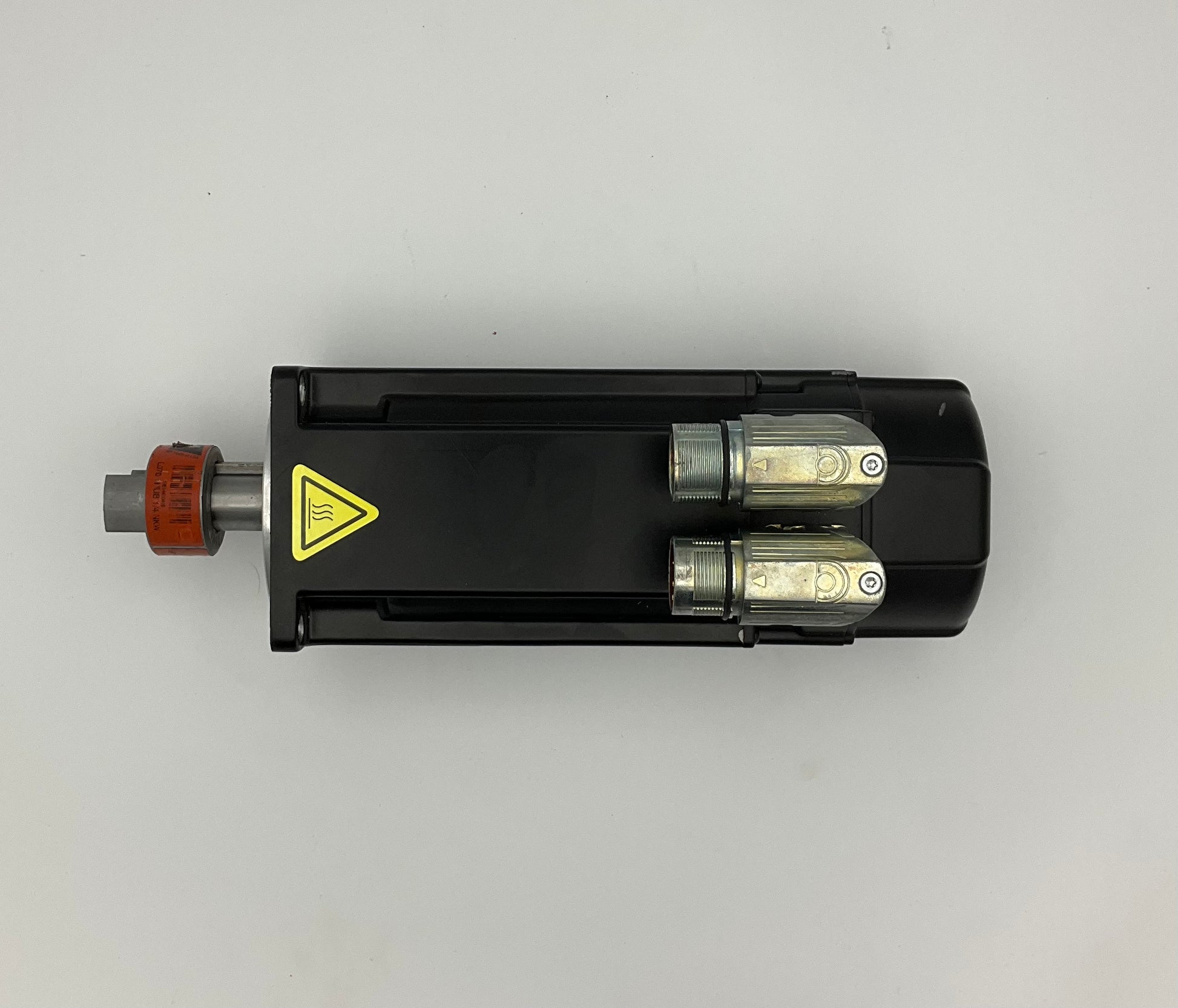

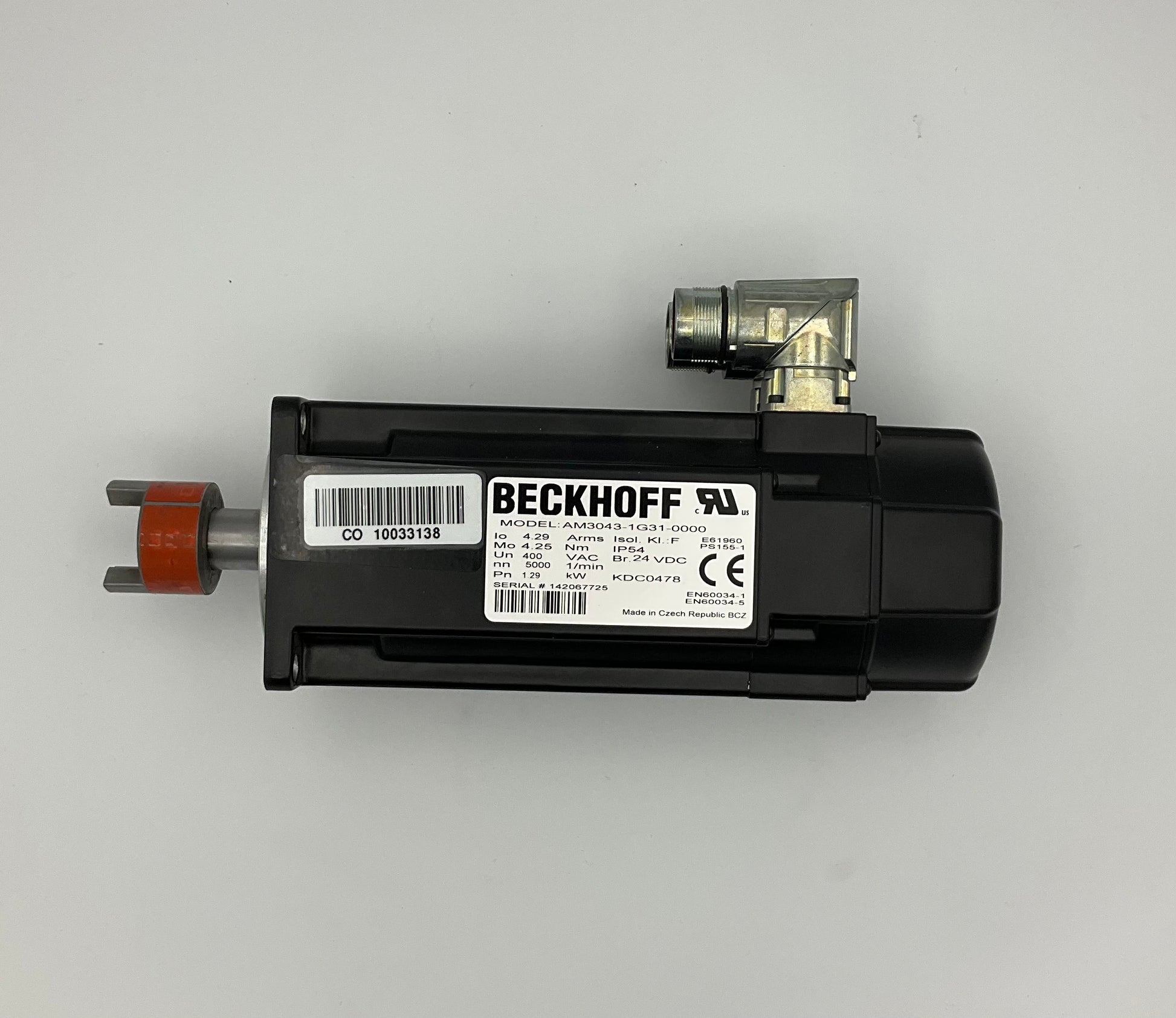

The AM3043 low-inertia servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 400 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 4,70…4.82 Nm. The low-inertia servomotor with flange code F4 (87 mm) and motor length 3 has a shaft diameter b = 19 k6 and a free shaft end of d = 40 mm.
- shaft with groove and feather key according to DIN 6885
- single-turn absolute encoder
- BiSS, absolute position within one revolution
- electronic identification plate
- 2048 sine periods per revolution
- with holding brake
- rotatable angular connectors for motor and feedback cable
| Specification | AM3043-wGyz-0000 |
|---|---|
| Motor type | synchronous servomotors |
| Nominal voltage | 480 V AC |
| Standstill torque | 4.80 Nm |
| Rated torque | 3.01 Nm |
| Peak torque | 18.8 Nm |
| Rated speed | 5000 min-1 |
| Rated power | 1.58 kW |
| Standstill current | 4.87 A |
| Peak current | 24.4 A |
| Torque constant | 0.99 Nm/A |
| Rotor moment of inertia | 2.090 kgcm² |
| Motor feedback | resolver , BiSS B , EnDat 2.1 |
| Cooling | convection |
| Connection method | M23 |
| Ambient temperature (operation) | +5…+40 °C |
| Approvals/markings | CE, cURus, EAC |
