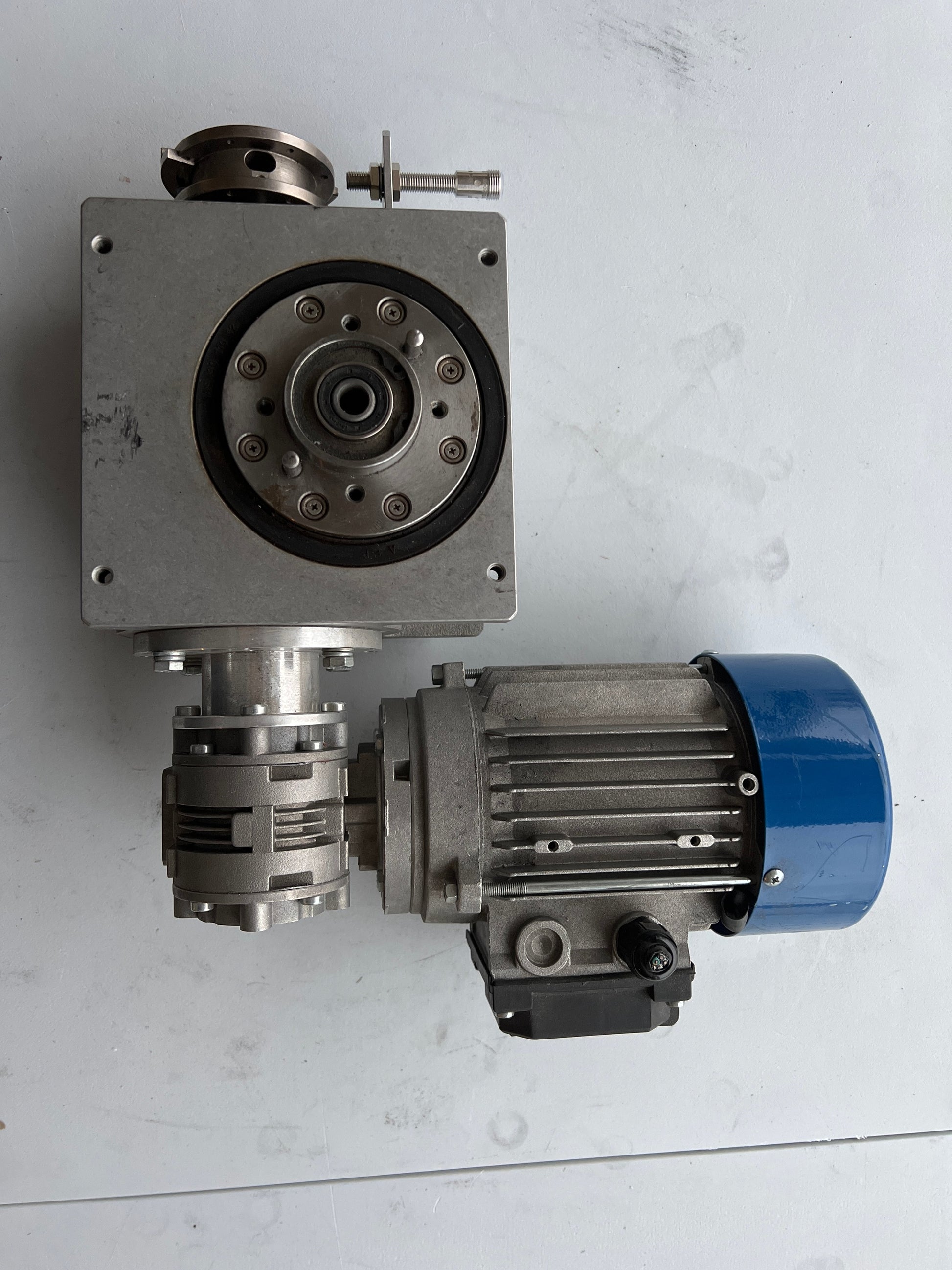

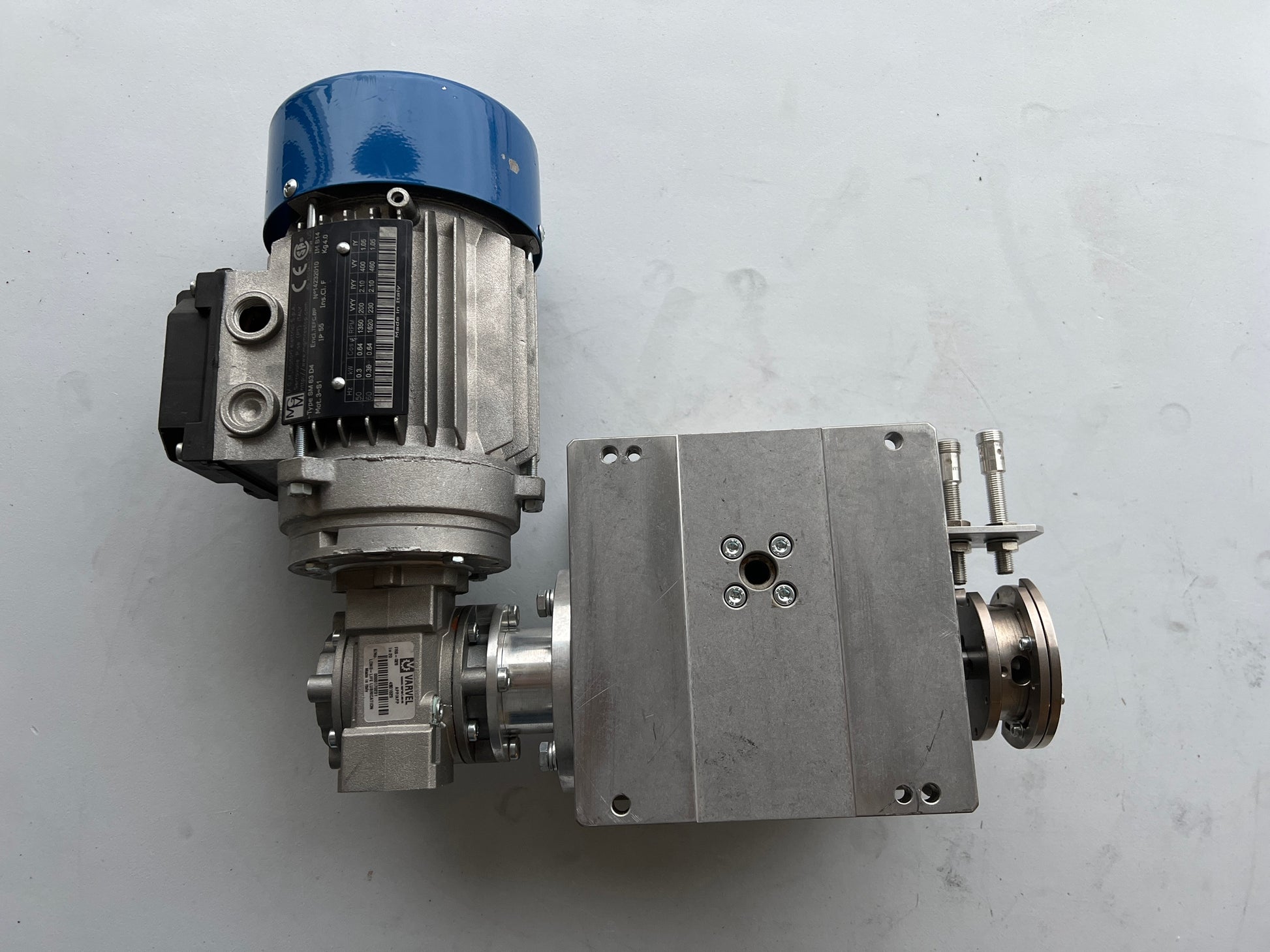

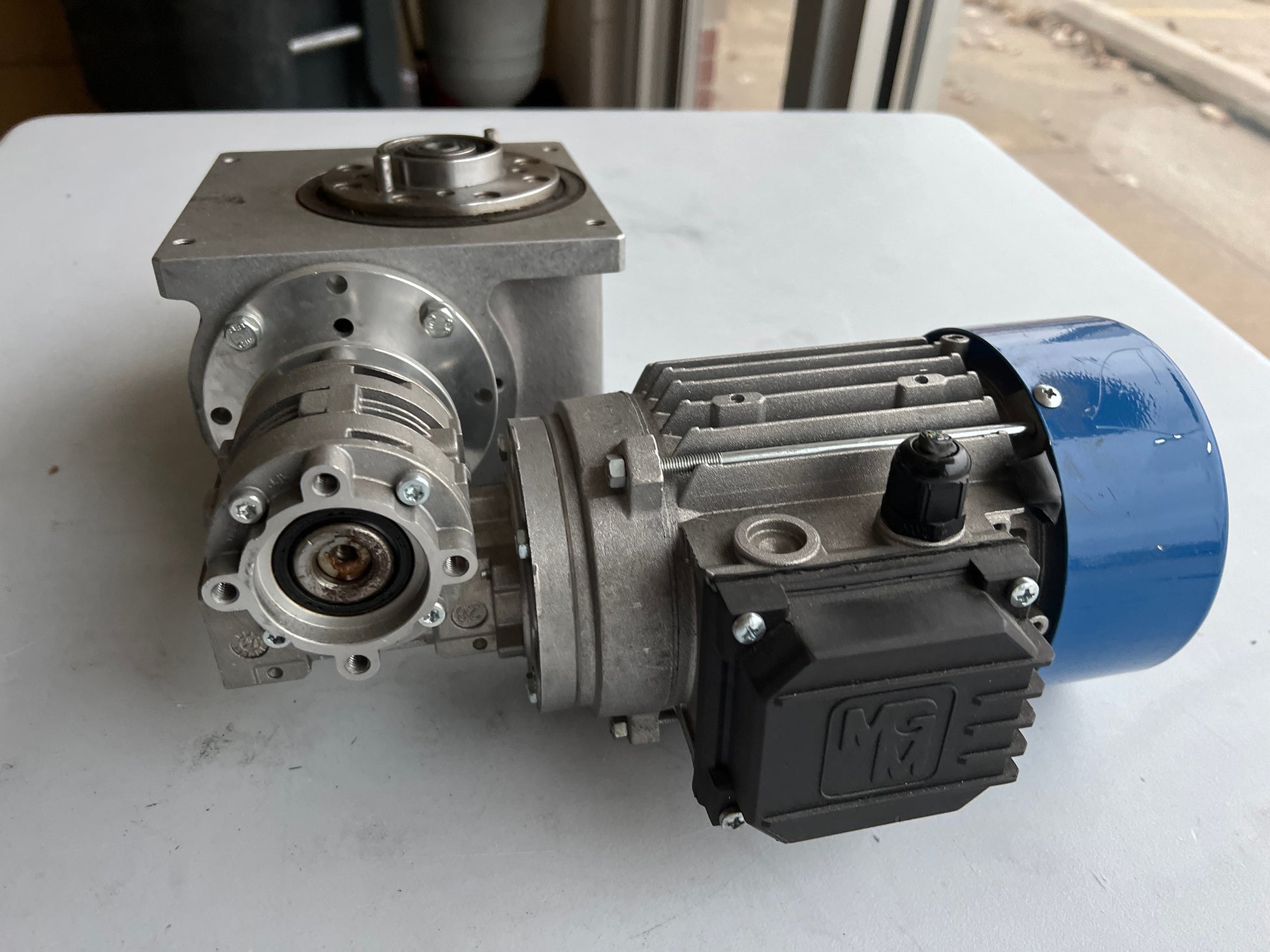

CDS- IT 75 - Dial Motor & Gear Box
Product Description - IT 75 Dial Gear

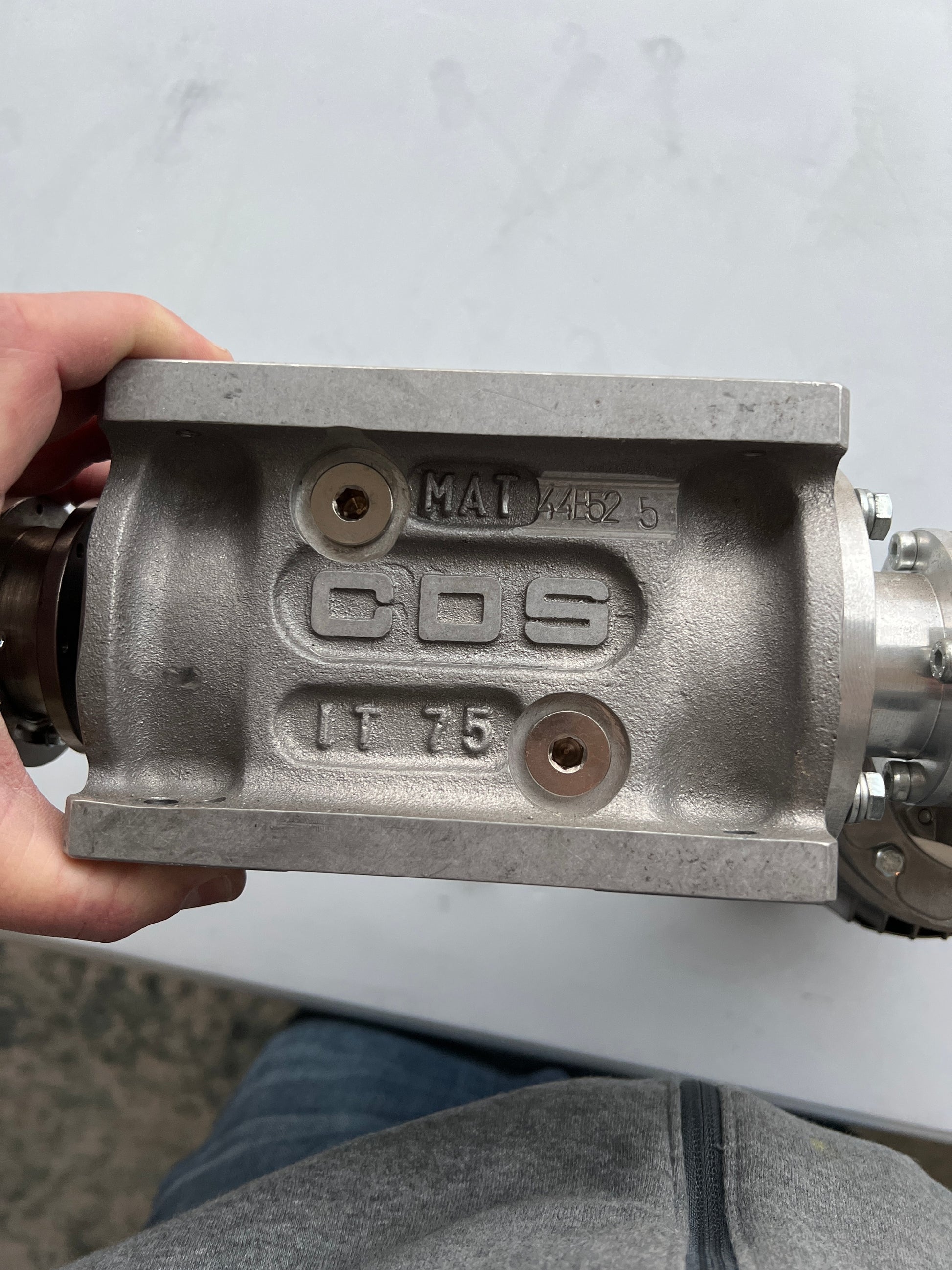

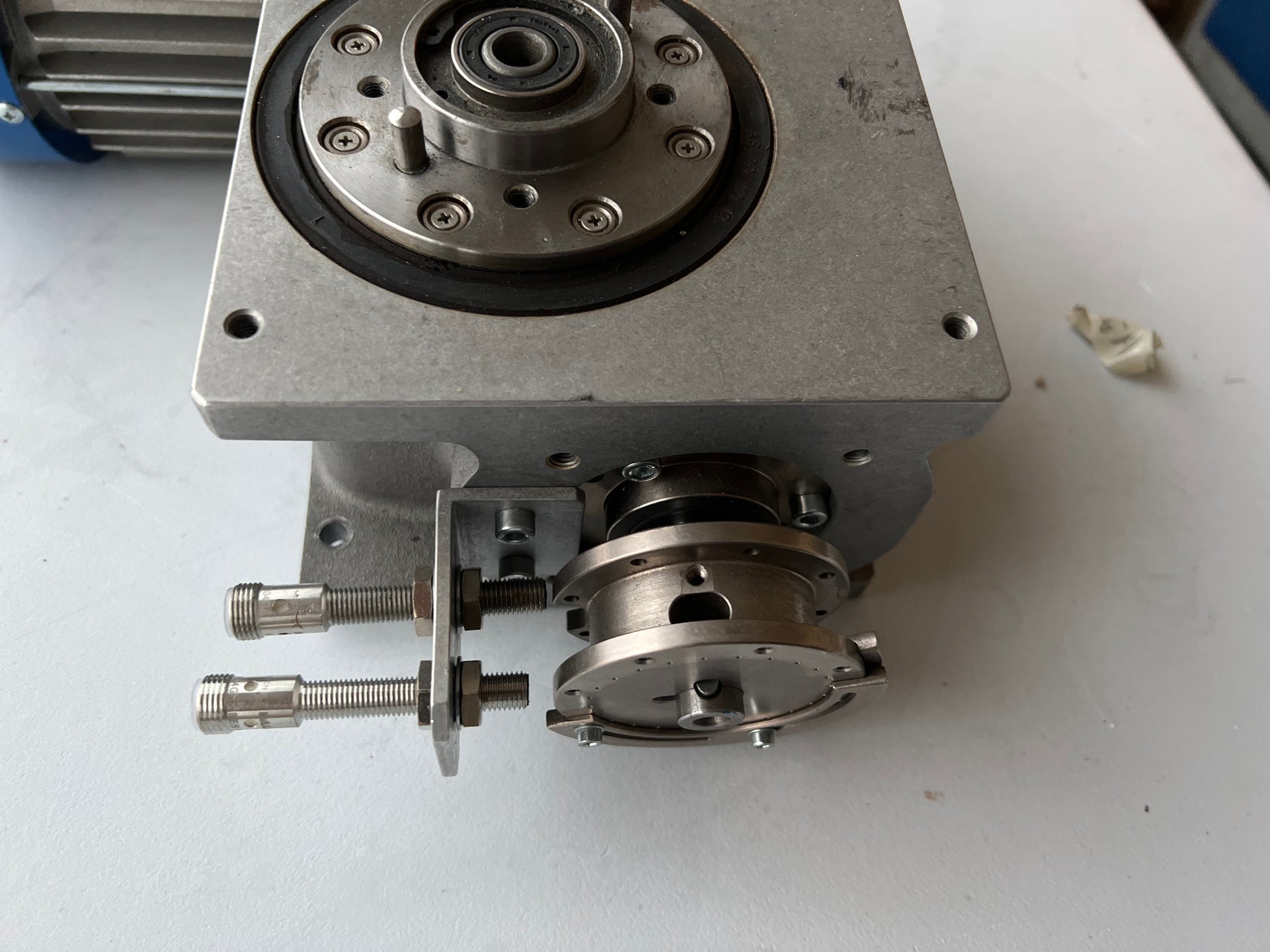

The CDS IT 75 is a rotary indexing table that is designed for high-speed and high-precision applications. It is available in a variety of sizes and configurations, and can be customized to meet the specific needs of the user.
The IT 75 features a cast iron housing that provides rigidity and durability. It also has a precision-machined cam that ensures accurate indexing. The table is driven by a high-torque motor that provides smooth and consistent operation.
The IT 75 is ideal for a variety of applications, including machine tools, robotics, and automation. It is also a popular choice for use in the medical and aerospace industries.
Specification Table
| Feature | Specification |
|---|---|
| Size | 75 mm diameter |
| Number of stations | 2-12 |
| Indexing accuracy | ±0.001° |
| Indexing speed | Up to 10,000 rpm |
| Torque | Up to 100 Nm |
| Weight | 15 kg |
| Power supply | 230 V AC |
Features
- Cast iron housing for rigidity and durability
- Precision-machined cam for accurate indexing
- High-torque motor for smooth and consistent operation
- Available in a variety of sizes and configurations
- Customizable to meet the specific needs of the user
Benefits
- High-speed and high-precision indexing
- Rigid and durable construction
- Accurate indexing
- Smooth and consistent operation
- Customizable to meet the specific needs of the user
Applications
- Machine tools
- Robotics
- Automation
- Medical
- Aerospace
Product Description - MGM SM63D4 Motor

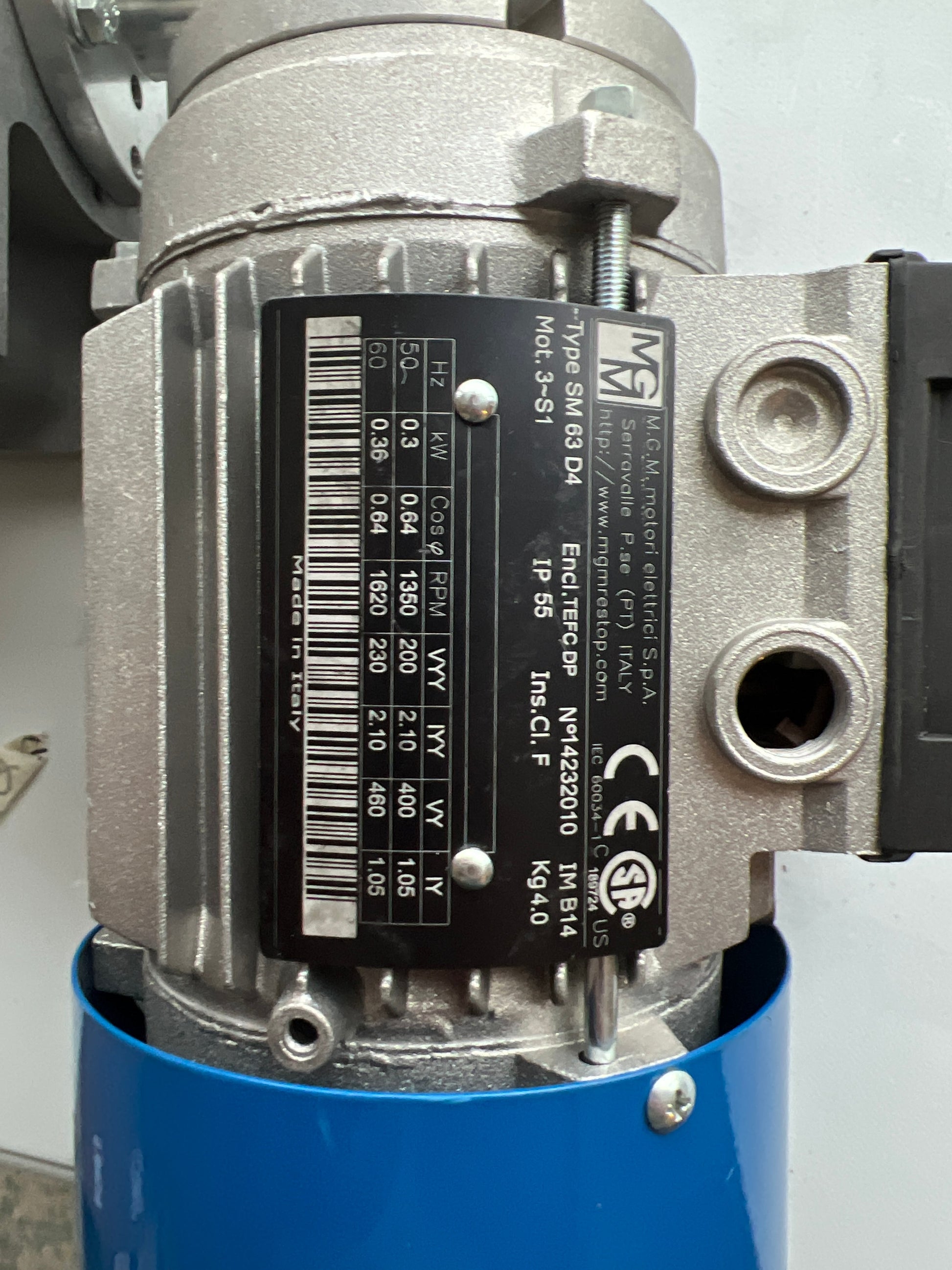

The MGM SM63D4 is a high-efficiency, totally enclosed fan-cooled (TEFC) squirrel-cage induction motor. It is designed for continuous duty under tough service conditions, and is used wherever compactness, energy saving and reliability are primary requirements.
The SM63D4 is available in a variety of power ratings and frame sizes, and can be configured for single-speed or two-speed operation. It is also available with a variety of mounting options, including foot mounting, face mounting, and flange mounting.
The SM63D4 is built to the highest standards of quality and performance, and is backed by a comprehensive warranty.
Specification Table
| Parameter | Value |
|---|---|
| Power Rating | 63 HP |
| Frame Size | D4 |
| Voltage | 230/460 V |
| Frequency | 60 Hz |
| Speed | 1750 RPM |
| Efficiency | Premium Efficiency (IE3) |
| Insulation Class | F |
| Protection Class | IP55 |
| Weight | 250 kg |
Features
- High efficiency
- Totally enclosed fan-cooled (TEFC)
- Continuous duty
- Tough service conditions
- Compact size
- Low noise
- Low maintenance
- Variety of power ratings and frame sizes
- Variety of mounting options
Product Description - Varvel FRS-028 Worm Gear

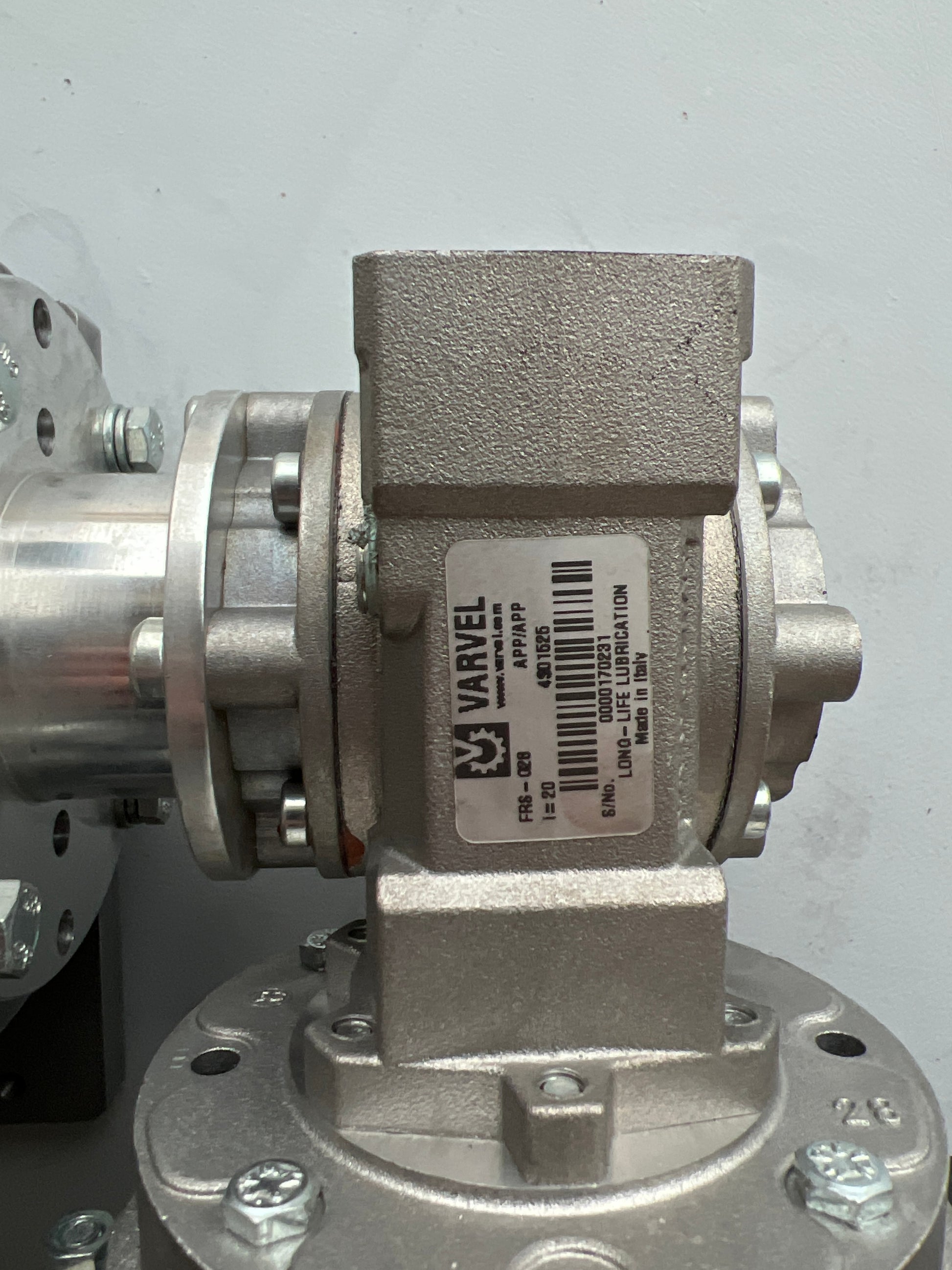

The Varvel FRS-028 is a single-stage worm gearbox with an input flange. It is designed for use with small or medium power applications. The gearbox has a reduction ratio of 28:1 and can output up to 15 Nm of torque. It is made of high-quality materials and is designed to be durable and reliable.
Specification Table
| Feature | Specification |
|---|---|
| Reduction Ratio | 28:1 |
| Output Torque | 15 Nm |
| Input Shaft Diameter | 14 mm |
| Output Shaft Diameter | 10 mm |
| Mounting | Flange |
| Weight | 2.5 kg |
| Dimensions (L x W x H) | 120 x 100 x 100 mm |
Applications
The Varvel FRS-028 can be used in a variety of applications, including:
- Automation
- Food and beverage processing
- Material handling
- Packaging
- Textile machinery
- Woodworking machinery
