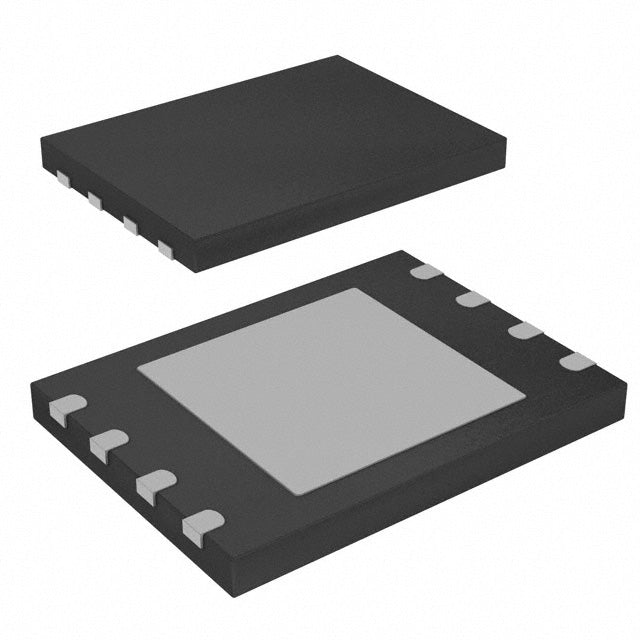

Cypress Semiconductor - S25FL116K0XNFI013
Product Description
The Cypress Semiconductor - S25FL116K0XNFI013 is a 16-megabit (2-megabyte x 8) serial NOR Flash memory device. It is organized as 2,048 pages of 8192 bits (1024 bytes) each and 128 sectors of 4096 bits (512 bytes) each. The device operates from a single 3.3V power supply and has a maximum clock frequency of 108 MHz. It features a number of advanced features, including:
- Read/write times of 7ns and 45ns, respectively
- Guaranteed endurance of 1 million erase/write cycles
- Data retention of 10 years at 85°C
- Support for 4-byte addressing
- 1.8V and 3.3V I/O voltage options
- Dual-I/O and quad-I/O configurations
The S25FL116K0XNFI013 is a versatile and reliable NOR Flash memory device that is suitable for a wide range of applications, including:
- Embedded systems
- Industrial automation
- Medical devices
- Consumer electronics
- And more
Specification Table
| Feature | Specification |
|---|---|
| Memory Capacity | 16Mbit (2M x 8) |
| Organization | 2048 pages of 8192 bits (1024 bytes) each, 128 sectors of 4096 bits (512 bytes) each |
| Interface | Serial Peripheral Interface (SPI) |
| Voltage | 1.8V or 3.3V |
| Clock Frequency | Up to 108 MHz |
| Endurance | 1 million erase/write cycles |
| Data Retention | 10 years at 85°C |
| Addressing | 4-byte addressing |
| I/O Voltage | 1.8V or 3.3V (dual-I/O) |
| I/O Configuration | Dual-I/O or quad-I/O |
Applications
The S25FL116K0XNFI013 is a versatile and reliable NOR Flash memory device that is suitable for a wide range of applications, including:
- Embedded systems
- Industrial automation
- Medical devices
- Consumer electronics
- And more
Benefits
The S25FL116K0XNFI013 offers a number of benefits, including:
- High speed performance
- Long lifetime
- Wide range of operating temperatures
- Flexible I/O options
