- Sku: diodes_ap2210n_33trg1
- Vendor: Diodes
Diodes - AP2210N-3.3TRG1
$33.50 USD
Just 1 left. Order soon!
Product Description

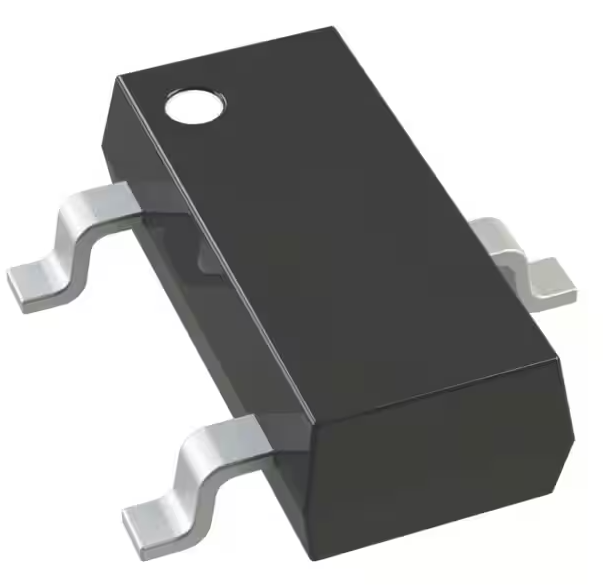

The AP2210N-3.3TRG1 is a 300mA CMOS LDO 3.3V 250mV linear regulator from Diodes Incorporated. It is available in the space saving SOT-23-3 package.
Features
- Up to 300mA Output Current
- Excellent ESR Stability
- Low Standby Current
- Low Dropout Voltage: VDROP = 250mV at 300mA
- High Output Accuracy: ±1%
- Good Ripple Rejection Ability: 75dB at 100Hz and IOUT = 300mA
- Individual logic compatible enable/shutdown control inputs
- Low power shutdown mode for extended battery life
- Overcurrent protection
- Overtemperature protection
- Reversed current protection
Specifications
| Feature | Specification |
|---|---|
| Input Voltage | 2.5V to 13.2V |
| Output Voltage | 3.3V |
| Output Current | 300mA |
| Dropout Voltage | 250mV typical |
| Quiescent Current | 150µA maximum |
| Package | SOT-23-3 |
| RoHS Compliant | Yes |
Applications
The AP2210N-3.3TRG1 is suitable for a wide range of applications, including:
- Battery-powered devices
- Consumer electronics
- Industrial equipment
- Medical devices
- Telecommunications
