- Sku:
- Vendor: Diodes
Diodes - AP2210N-5.0TRG1
$150.00 USD
In stock!
Product Description
The AP2210N-5.0TRG1 is a 300mA low dropout (LDO) regulator that provides a fixed output voltage of 5.0V. It features ultra-low noise, low standby current, and excellent power supply ripple rejection. The AP2210N-5.0TRG1 is ideal for battery-powered applications, such as handsets and PDAs; and in noise sensitive applications, such as RF electronics.
Specification Table
| Feature | Specification |
|---|---|
| Output Voltage | 5.0V |
| Output Current | 300mA |
| Dropout Voltage | 250mV typical |
| Standby Current | 1µA maximum |
| Ripple Rejection | 75dB at 100Hz |

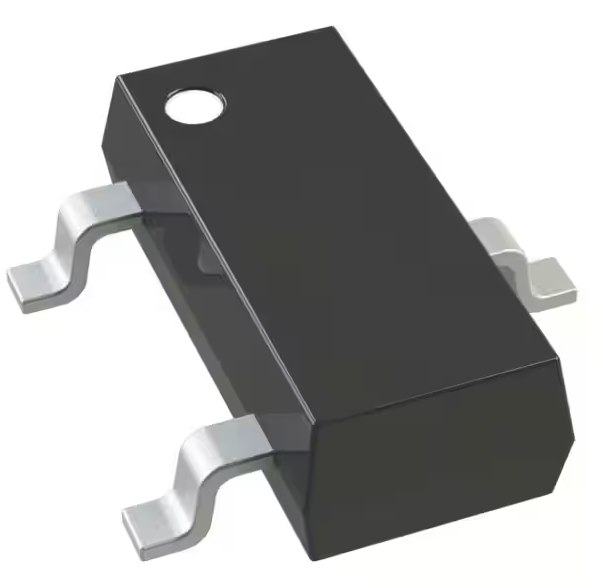

| Package | SOT-23-3 |
| Temperature Range | -40°C to +85°C |
Applications
The AP2210N-5.0TRG1 can be used in a variety of applications, including:
- Battery-powered devices
- Noise-sensitive devices
- RF electronics
- Audio/video equipment
- Medical devices
- Industrial equipment
