- Sku: diodes_dmn6140l_7
- Vendor: Diodes
Diodes - DMN6140L-7
$54.67 USD
Just 1 left. Order soon!
Product Description

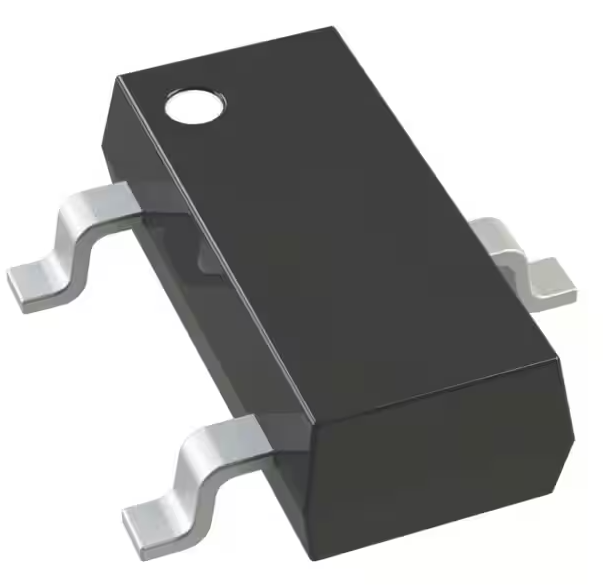

The DMN6140L-7 is a N-channel enhancement mode MOSFET (metal-oxide-semiconductor field-effect transistor) in a small outline transistor (SOT-23) package. It is rated for a maximum drain-source voltage of 60V and a maximum continuous drain current of 2.3A. The DMN6140L-7 features a low on-resistance of 140mΩ at 10V gate-source voltage, making it ideal for high-efficiency power applications.
Specification Table
| Feature | Specification |
|---|---|
| Package | SOT-23 |
| Voltage Rating | 60V |
| Current Rating | 2.3A |
| On-Resistance (Rds(on)) | 140mΩ @ 10V |
| Gate-Source Voltage (Vgs) | 3V to 10V |
| Power Dissipation (Pd) | 0.7W |
| Operating Temperature Range | -55°C to 150°C |
Applications
The DMN6140L-7 can be used in a variety of applications, including:
- Motor control
- Power switching
- LED drivers
- Solar applications
- Battery-operated devices
