Ethertronics - 1001013
Product Description

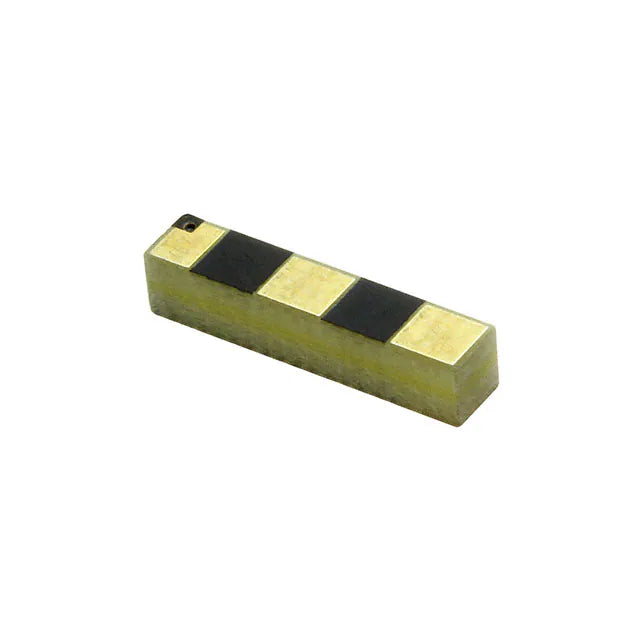

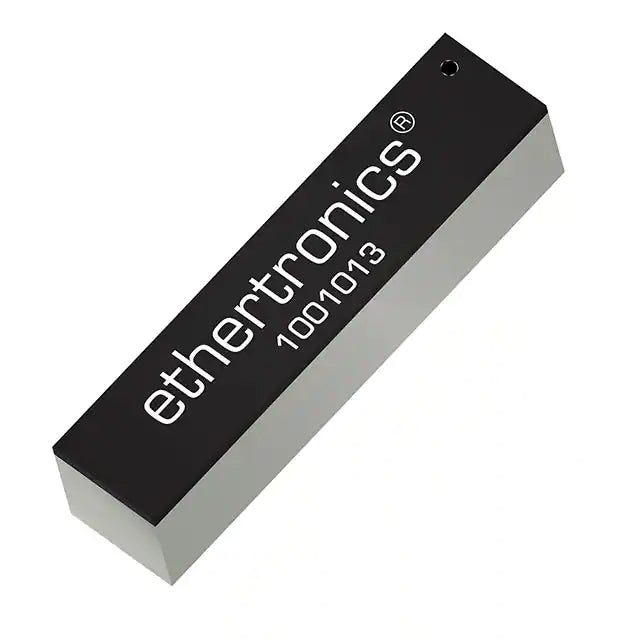

The Ethertronics 1001013 is a 2.4 GHz / 5 GHz dual-band, tunable, embedded PCB antenna that is ideal for smart homes, digital signs, automotive, Internet of Things (IoT), and other applications. The antenna features patented isolated magnetic dipole (IMD) technology to deliver a unique size and performance combination. This technology provides superior RF field containment, resulting in less interaction with surrounding components.
The 1001013 is a small, low-profile antenna that can be easily integrated into a variety of designs. It is available in a variety of configurations, including SMD, SMT, and cable-to-board. The antenna is also RoHS compliant and meets all FCC and CE requirements.
Specification Table
| Feature | Specification |
|---|---|
| Frequency Range | 2.4 - 5.8 GHz |
| VSWR | < 2.0 |
| Gain | 2.5dBi |
| Polarization | Omnidirectional |
| Impedance | 50Ω |
| Radiation Pattern | 3dB Beamwidth: 60° |
| Dimensions (L x W x H) | 10 x 10 x 1.6 mm |
| Weight | 0.2 g |
Applications
The Ethertronics 1001013 can be used in a variety of applications, including:
- Smart homes
- Digital signs
- Automotive
- Internet of Things (IoT)
Benefits
The Ethertronics 1001013 offers a number of benefits, including:
- Small, low-profile design
- Patented IMD technology
- RoHS compliant
- FCC and CE compliant
- Wide frequency range
- High gain
- Omnidirectional polarization
