- Sku:
- Vendor: Hirose Electric
Hirose Electric - DF40C-100DS-0.4V (51)
$3,850.00 USD
Just 1 left. Order soon!

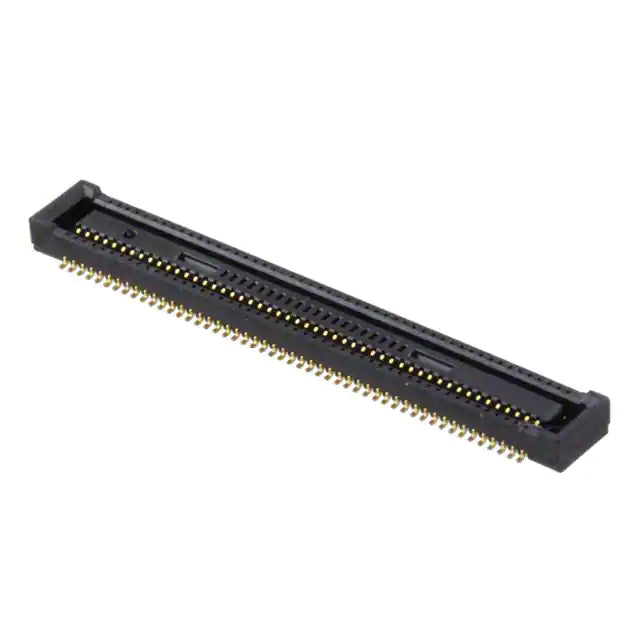

he DF40C-100DS-0.4V(51) is a 100-position surface mount connector from Hirose Electric. It has a 0.4mm contact pitch and is gold plated. The connector is rated for 0.3A at 30V AC or DC. It is also rated for -35 to 85 degrees Celsius. The connector is available in a straight orientation.
The DF40C-100DS-0.4V(51) is a popular choice for use in a variety of applications, including telecommunications, industrial automation, and medical devices. It is a reliable and durable connector that can withstand the harsh environments of many industrial applications.
| Feature | Value |
|---|---|
| Number of positions | 100 |
| Contact pitch | 0.4mm |
| Contact plating | Gold |
| Current rating | 0.3A |
| Voltage rating | 30V AC or DC |
| Temperature range | -35 to 85 degrees Celsius |
| Orientation | Straight |
| Height | 1.5mm |
| Width | 22.6mm |
| Depth | 3.38mm |
