Hirose Electric - DF40HC(3.0)-100DS-0.4V(51)
Product Description

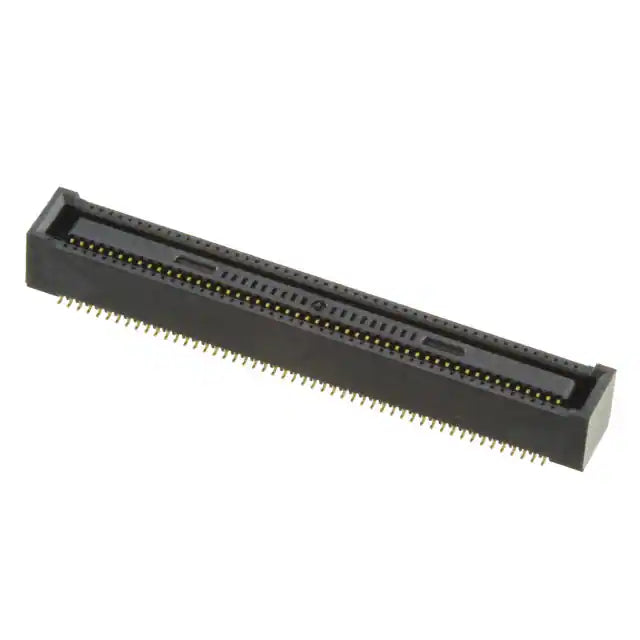

The Hirose Electric DF40HC(3.0)-100DS-0.4V(51) is a 100-position, 2-row, surface-mount, mezzanine connector with a 0.4mm pitch. It is made of high-quality materials and construction, and is designed to provide reliable and durable performance in a variety of applications.
The connector has a floating design, which means that the contacts are not held in place by the housing. This allows for a more flexible and secure connection, and helps to prevent damage to the contacts. The connector also features a gold-plated finish, which provides corrosion resistance and long-term conductivity.
The DF40HC(3.0)-100DS-0.4V(51) is compatible with a wide range of devices and systems, and is ideal for use in high-density applications. It is also RoHS compliant, making it a safe and environmentally friendly choice.
Specification Table
| Feature | Specification |
|---|---|
| Number of positions | 100 |
| Row count | 2 |
| Pitch | 0.4mm |
| Contact plating | Gold |
| Current rating | 300mA |
| Voltage rating | AC 30V, DC 30V |
| Temperature range | -35°C to +85°C |
| Mount type | Surface mount |
| Housing material | PBT |
| Contact material | Phosphor bronze |
| Contact finish | Gold |
| Shell finish | Tin plating |
| Dimensions (mm) | 100 x 25 x 10 |
| Weight (g) | 10 |
Applications
The Hirose Electric DF40HC(3.0)-100DS-0.4V(51) is a versatile connector that can be used in a variety of applications, including:
- Computer motherboards
- Networking equipment
- Telecommunications equipment
- Industrial automation equipment
- Medical devices
- Consumer electronics
