Sprecher+Schuh - PCS-003-600V-024

Visit Manufacturer Site

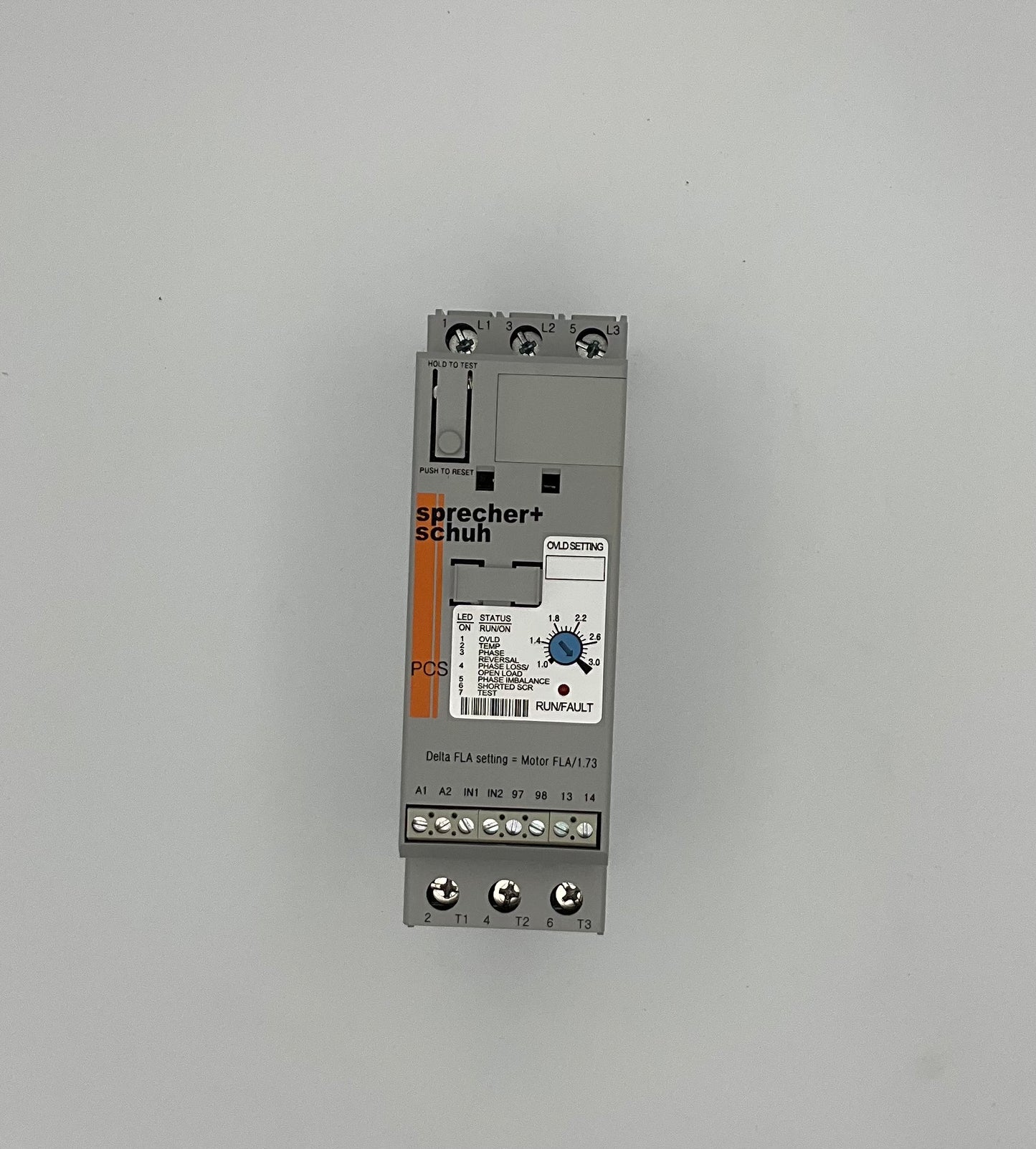

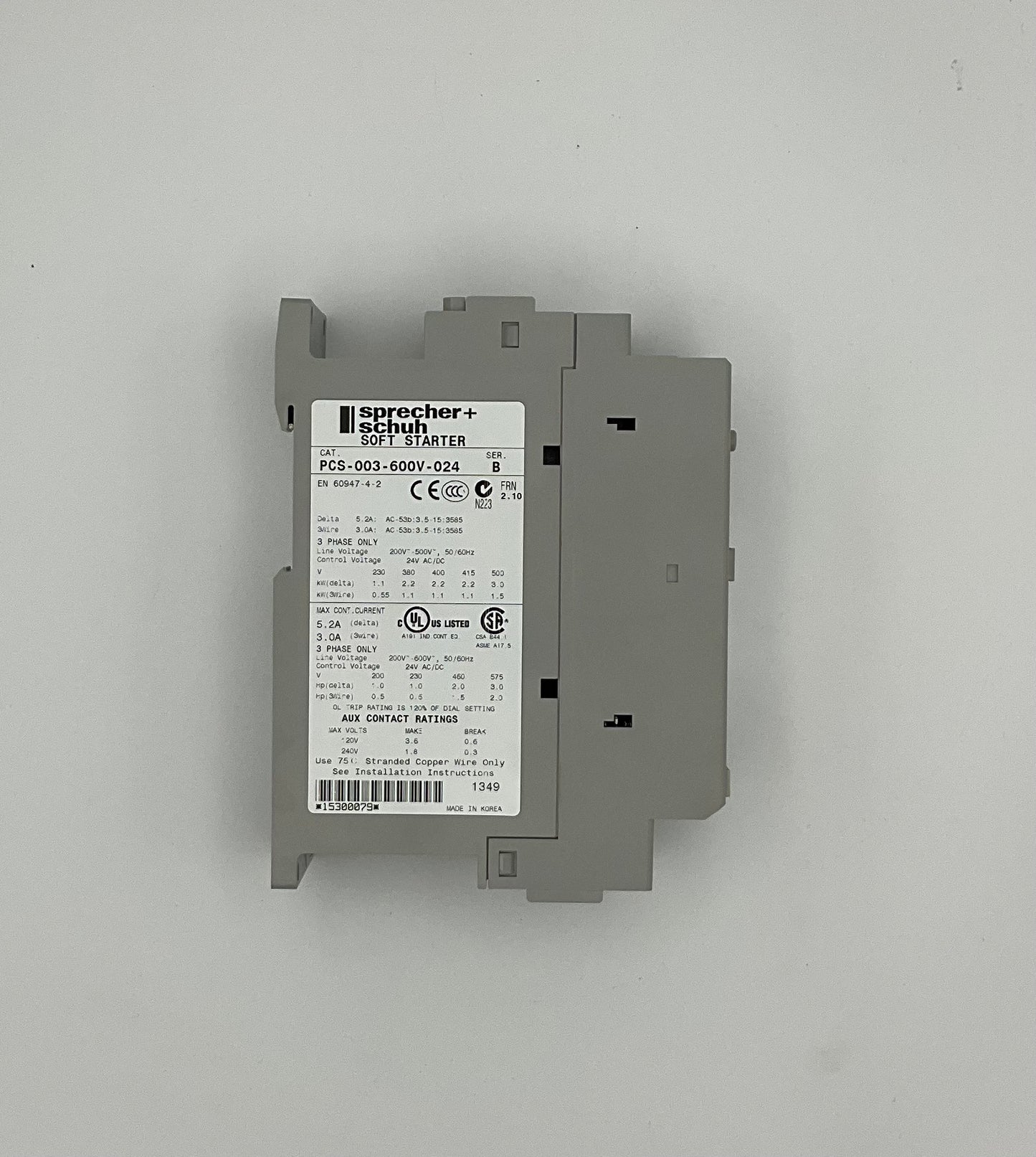

The PCS Softstarter Controller offers rich features at an economical price. This softstarter is specifically designed to start 3-phase motors (up to 400HP@460V / 500HP@575V), but is very compact, easy to use and DIN-rail mountable for models up to 85A. Four standard starting modes are available with the PCS Controller:

• Soft Start
• Soft Start with Selectable Kick-Start
• Current Limit Starting
• Soft Start with Soft Stop
• Microprocessor controller designed for 3-phase motors up to 480A (3...85A DIN-rail mountable)
• Provides three different starting modes and selectable soft stop mode
• Includes built-in electronic overload and bypass contactor
• All models wye-delta compatible (6 lead) up to 830A.
• Five frame sizes
• 1.5 HP to 400 HP @ 480V
• Built-in overload and SCR bypass
• Digital rotary switch
• LED fault indication
• Line or Delta compatible
• Bypass contactor
• Over temperature protection
• Phase reversal and phase imbalance protection
• Push-to-test function
