- Sku: texas_instruments_tps25942arvcr
- Vendor: Texas Instruments
Texas Instruments - TPS25942ARVCR
$2,610.00 USD
In stock!
Product Description:
The TPS25942ARVCR is a compact, feature-rich power management device with a full suite of protection functions. The wide operating range allows control of many popular DC bus voltages. Integrated back-to-back FETs provide bidirectional current control.
Features:
- 2.7-V to 18-V operating range
- 42mΩ typical on-resistance
- 0.6-5.2A current rating
- Reverse current blocking
- IMON and PG pins

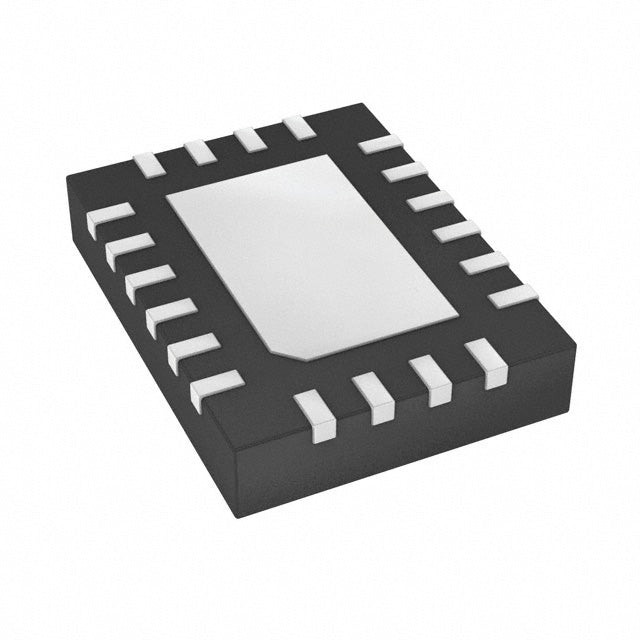

- WQFN (RVC) package with 20 pins
Specifications:
Parameter | Value |
---|---|
Operating Voltage | 2.7 V to 18 V |
On-Resistance | 42 mΩ typical |
Current Rating | 0.6 A to 5.2 A |
Reverse Current Blocking | Yes |
IMON Pin | Yes |
PG Pin | Yes |
Package | WQFN (RVC) with 20 pins |
Applications:
- Battery-powered devices
- Industrial equipment
- Consumer electronics
- Automotive applications
